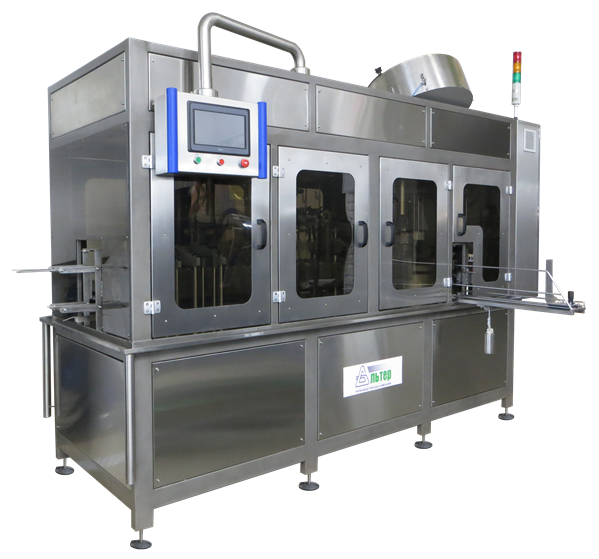

Order the alter 04a device for liquid products

It is intended for filling and hermetically sealing liquid and pasty products (whole milk, fermented milk products, juices, juices with pulp, fruit wines, etc.) in a rectangular cardboard bag with a double-sided polyethylene coating (Puree Pack, type "A" or type "B") and a foil cardboard bag (Puree Pack aseptic, type "A" or type "B") with a capacity from 250 to 1000 ml. At the request of the customer, the design of the machine provides for the possibility of installing a lid applicator (sealed converter and frequency generator), designed for internal ultrasonic sealing of the Twist Cap lid, PURE PAK cardboard packaging and equipping the machine with a clean zone system that ensures the maintenance of a clean air environment in the workspace and protects the product from environmental influences. The machine provides the ability to quickly reconfigure to another package volume (0.25; 0.5; 1.0 liters.) and is equipped with an automatic lubrication station for components and assemblies. The mandrel carousel is driven by an index gearbox.

Production time: 75 working days.

The machine includes:

Control unit (controller+terminal with touch control panel)
die-cut feeding and lifting unit;
the node for forming the bottom of the package;
mandrel carousel;
heating unit of the bottom of the package;
the sealing node of the bottom of the package;
package removal node;
package transfer node;
volumetric type dispenser (3 pcs.);
foam suction unit;
heating unit of the upper part of the package
sealing unit of the upper part of the package;
marking unit (thermomarker);
emergency furnace blowing unit;
reception table;
air treatment unit;
air distributor unit;
automatic lubrication unit;
The hopper is 80l. (with level sensor and pneumatically controlled valve)
spare parts kit
Main Features:

Kinematic capacity – 3,000 pack./hour
The method of dosing is volumetric (3 dosing sections of 0.5 liters each)
Dose adjustment – smooth 250-1000 ml, with precise adjustment
Dosage error: +/- 2%
Cold water consumption – 2 l/min
Overall dimensions – 3500x1800x2300 mm
Weight – no more than 1350 kg.
The material is stainless steel grade 08H18H10T, polyethylene, aluminum alloys. (Approved for use in contact with food). Electrical Equipment(OMRON Japan)
Pneumatic equipment ("Festo" Germany)
Pneumatic system:
Pressure – 6 kgf/sq.
m. Compressed air consumption - up to 2500 l/min
Power supply:

Voltage – 380/220 V, 50 Hz
Power consumption (maximum) – no more than 18 kW
Supply voltage of circuits and interlocks – 24 V
Additional devices:

A device for connecting to a centralized SIP sink
Individual sip washing system
The discharge conveyor is 1m.
Cumulative rotary table with adjustable rotation speed
Clean zone system
Applicator for ultrasonic internal sealing of Twist Cap
The warranty period is 1 year.

Post-warranty service, supply of spare parts, consumables.
